Create a location
Draw a geofence on the map, as a polygon or a circle, and give it a name. Campaigns fire when a phone crosses it.

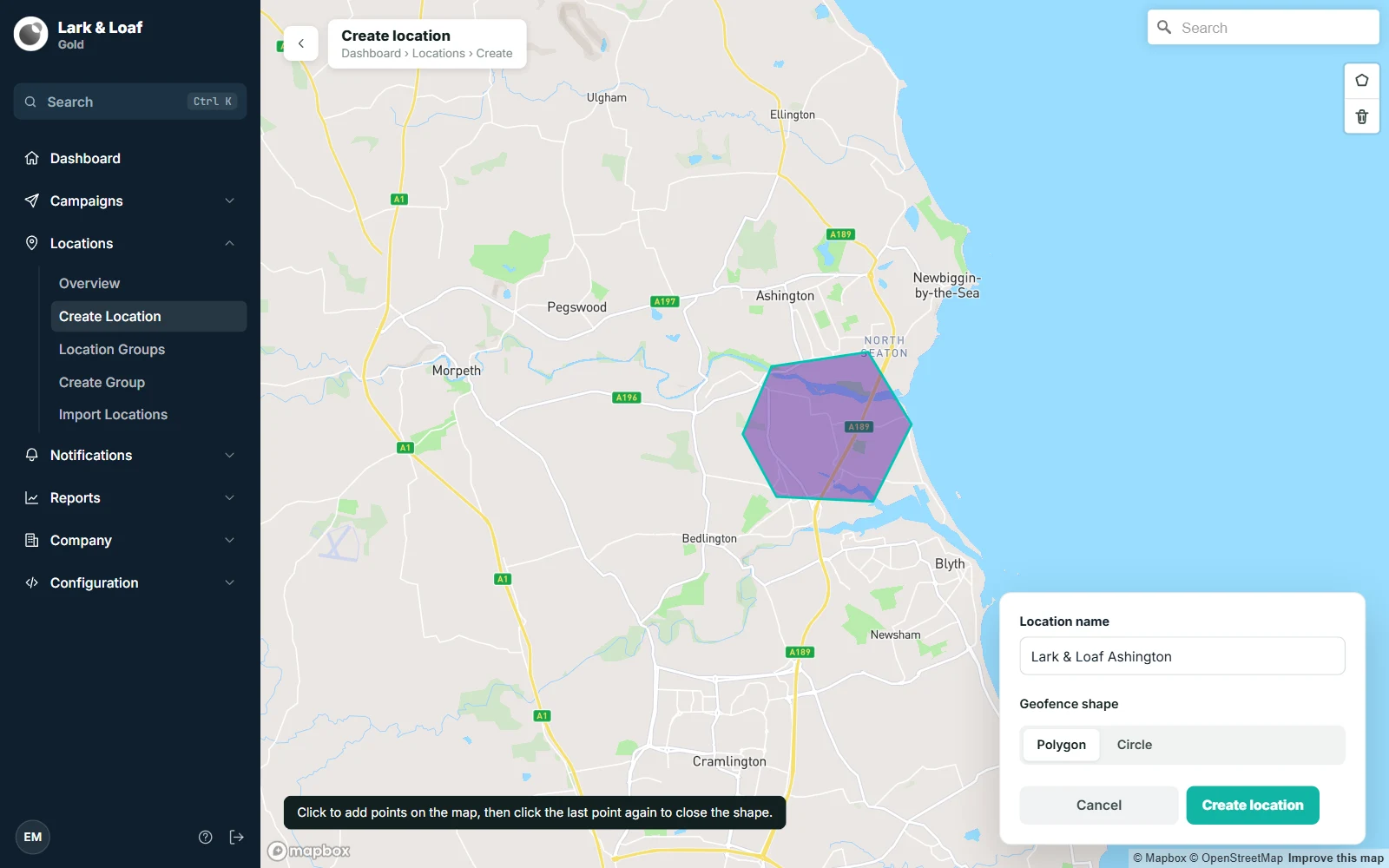

The Create location map editor with a polygon drawn and the form card showing Location name and Geofence shape
- 1Open the editorGo to Locations › Create Location, or click + on the locations list.
- 2Find the placeUse the search box on the map to find an address, postcode or business, or drag and zoom the map. The map starts in, and the search looks in, your company's Default country (set under Company › Overview › Regional defaults).
- 3Choose the shapeUnder Geofence shape, choose Polygon to draw the outline yourself, or Circle for a centre and a radius.
- 4Draw itFor a polygon, click to add points, then click the last point again to close the shape. For a circle, click the map to place the centre, then drag the slider to set the radius. The Draw polygon and Clear shape buttons at the top right of the map start again.
- 5Name and saveEnter a Location name and click Create location.
Shape rules#
| Shape | Rule |
|---|---|
| Circle | Radius 50 to 1,000 m (the slider starts at 150 m). |
| Polygon | At least 3 points and up to 99, with edges that don't cross. |
If a shape breaks a rule, the form says what to fix, for example "The shape crosses over itself. Redraw it so the edges don't cross."
Edit a location#
Open the location and click Edit. You can rename it, switch its shape, or redraw it, then click Save changes. View activity → goes back to its inspector. Every campaign using the location picks up the new shape.
Allow for GPS driftPhones can be tens of metres out in dense city centres. For a single shop, draw the geofence a little larger than the building so people are caught as they arrive (a circle of 100 to 200 m usually works), and avoid overlapping neighbouring geofences.
